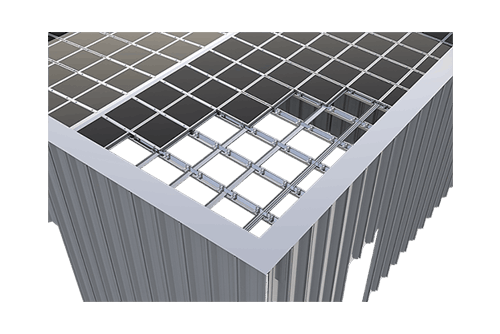

Suitable for new factory buildings and the renovation of existing factory.

Compatible with all framed components.

The supporting groove and the main gutter are independently designed, the supporting groove bearing the load and the gutter guiding water. The gutter adopts a tile-overlapping design to prevent water leakage at the joints.

The component cover plate is fixed with fasteners, which is more secure compared to traditional snap-on methods and provides a tighter fit with the components. This effectively prevents external water from entering the gutter.

The entire installation process can be carried out using electric power tools.

Developing a series of support structures using roof tiles with different structures.

The installation holes for the support arm and base of the bracket are square-shaped, and square-neck bolts are used to prevent rotation at this pivot point.

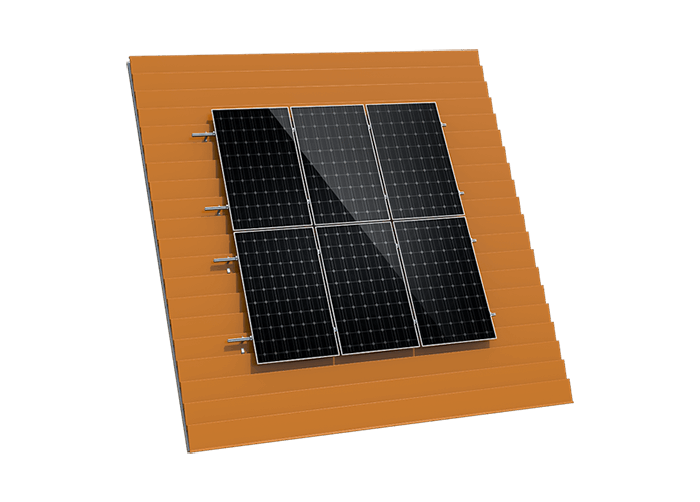

Roofs with glazed tiles on sloping beams made of different materials (wood, metal, concrete) are all adaptable.

If adequate assembly space is reserved, the entire installation process can be carried out using electric power tools.

The fixture matches the side-mounted guide rail structure, with the guide rail fixed on the side, ensuring high installation efficiency.

Two installation methods are available: horizontal or vertical. In horizontal installation (with specific requirements for the distance between corrugations), one set of fasteners is required less compared to vertical installation.

All fasteners are of M8 size, only one socket is needed to complete the entire construction.

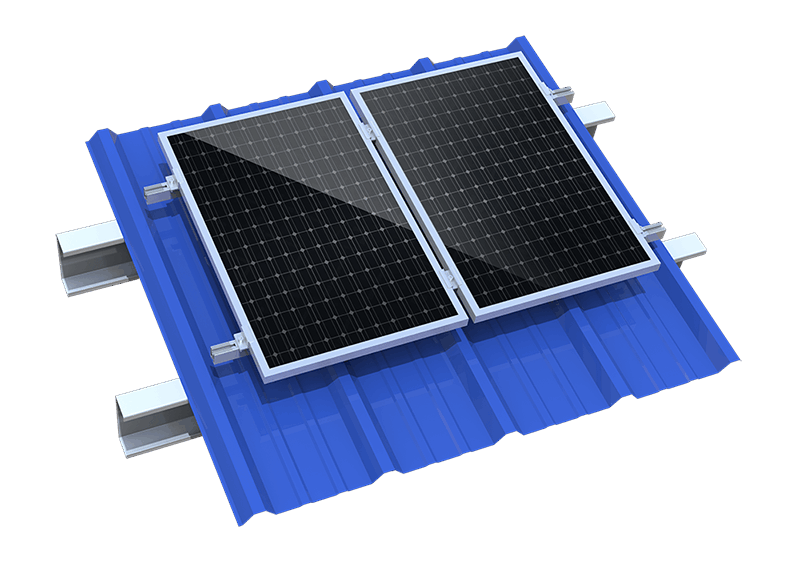

Using high-strength self-tapping screws to secure the bracket onto the roof purlins, the tensile resistance reaches 6000N.

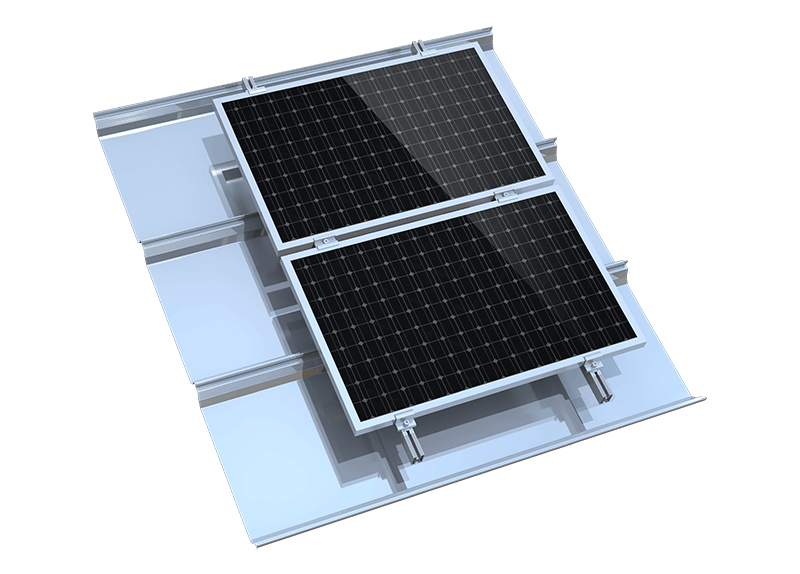

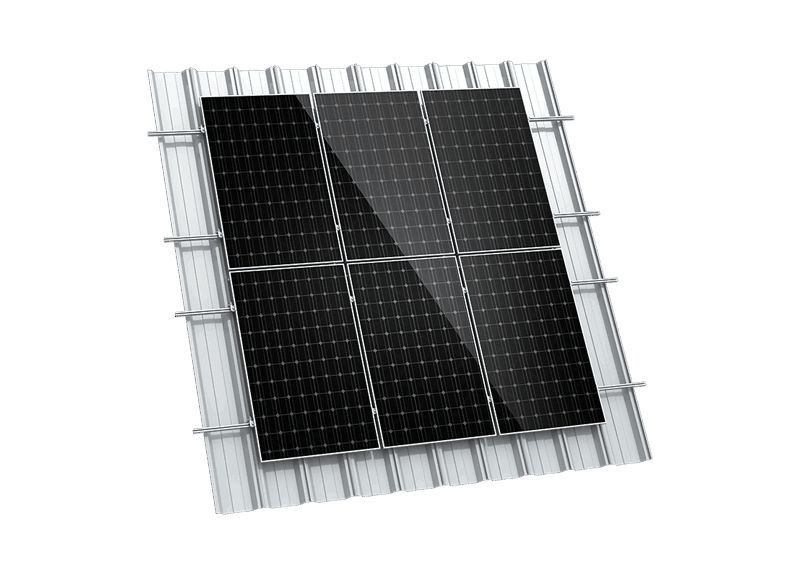

Using mounting rail installation, avoiding the limitations of the seams of color steel tiles, more efficiently utilizing the roof area, and increasing the installed capacity.

Different fixture series have been developed to cater to the adaptability of various specifications of color steel tiles, meeting the installation requirements of different roofs.

All fasteners are of M8 size, minimizing the number of installation tools and maximizing construction efficiency.

Clamping on the seam of the color steel tile, the measured tensile strength of a single node ＞ 1500N. Securing with 4 or 6 nodes per component, the strength is high.

Using mounting rail installation, avoiding the limitations of the seams of color steel tiles, more efficiently utilizing the roof area, and increasing the installed capacity.

Different fixture series have been developed to cater to the adaptability of various specifications of color steel tiles, meeting the installation requirements of different roofs.

All fasteners are of M8 size, minimizing the number of installation tools and maximizing construction efficiency.

Clamping on the seam of the color steel tile, the measured tensile strength of a single node ＞ 1500N. Securing with 4 or 6 nodes per component, the strength is high.

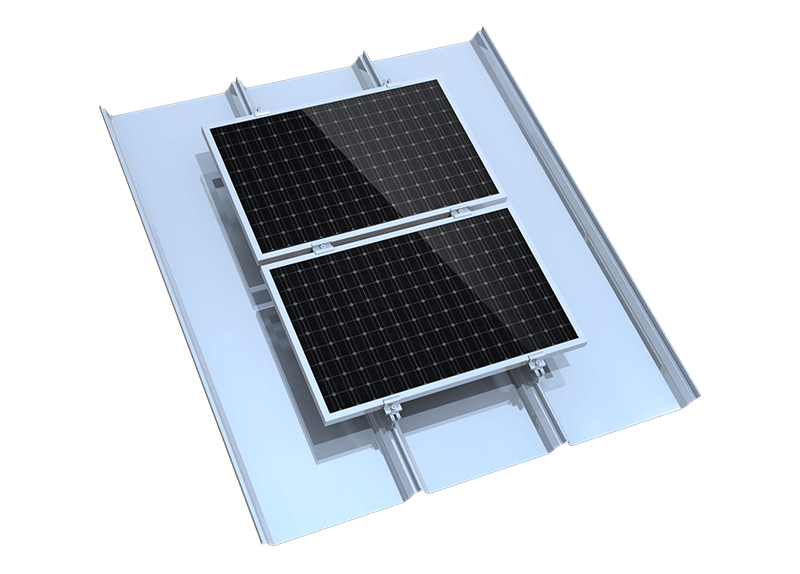

Installed along the seam line of the color steel tile, no additional rails are required, making the installation convenient and cost-effective.

Different fixture series have been developed to cater to the adaptability of various specifications of color steel tiles, meeting the installation requirements of different roofs.

All fasteners are of M8 size, minimizing the number of installation tools and maximizing construction efficiency.

Roofs with glazed tiles on sloping beams made of different materials (wood, metal, concrete) are all adaptable.

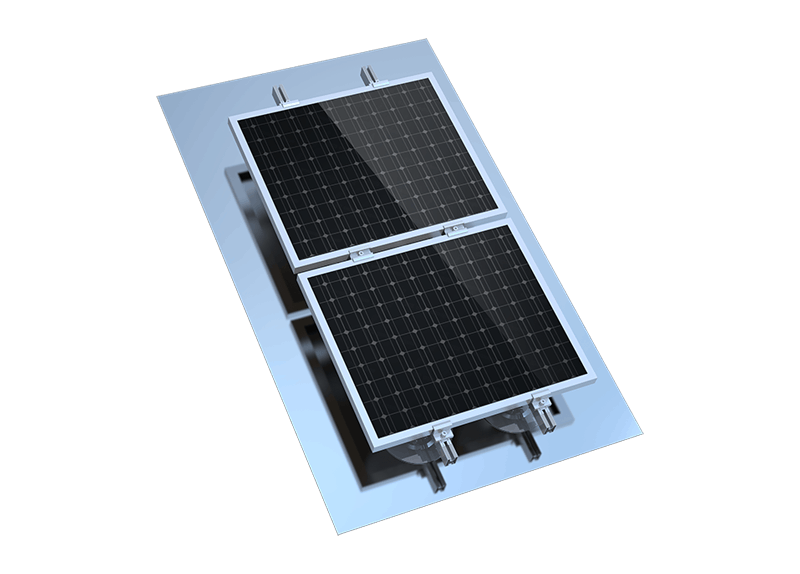

Non-penetrating Structure, bonding to the original roof waterproofing membrane through thermal fusion, without compromising the integrity of the original waterproofing structure.

Non-penetrating and single-layer rail installation structure, unrestricted by rafter or beam layout, allowing more flexible component arrangement.

All fasteners are of M8 size, minimizing the number of installation tools and maximizing construction efficiency.

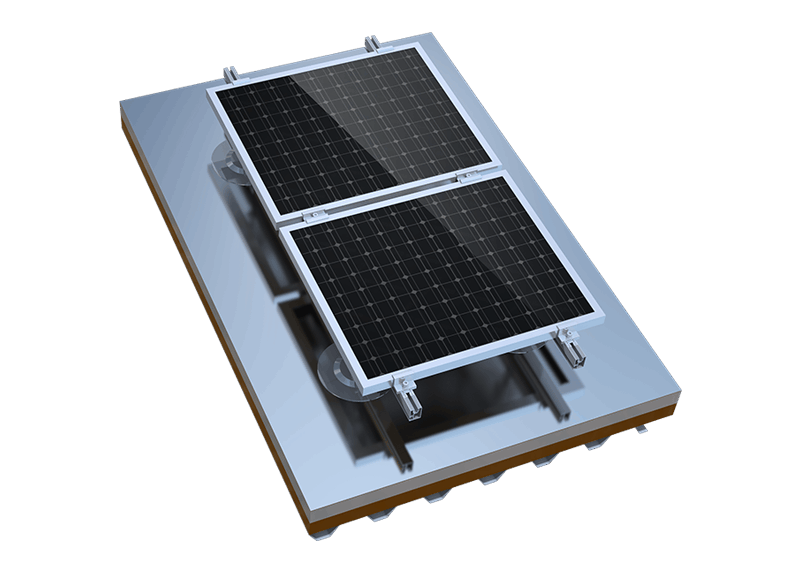

By utilizing an anchor rod structure directly connected to the steel framework of the roof, the fixation is more secure.

The circular structure design, coupled with the widened fusion area of 40mm, ensures a secure fusion, preventing any water leakage.

The anchor rod uses 304 stainless steel pull rivet nuts for fastening, providing high strength and excellent corrosion resistance. Simultaneously, it significantly reduces the opening size of the roof.

All fasteners are of M8 size, minimizing the number of installation tools and maximizing construction efficiency.

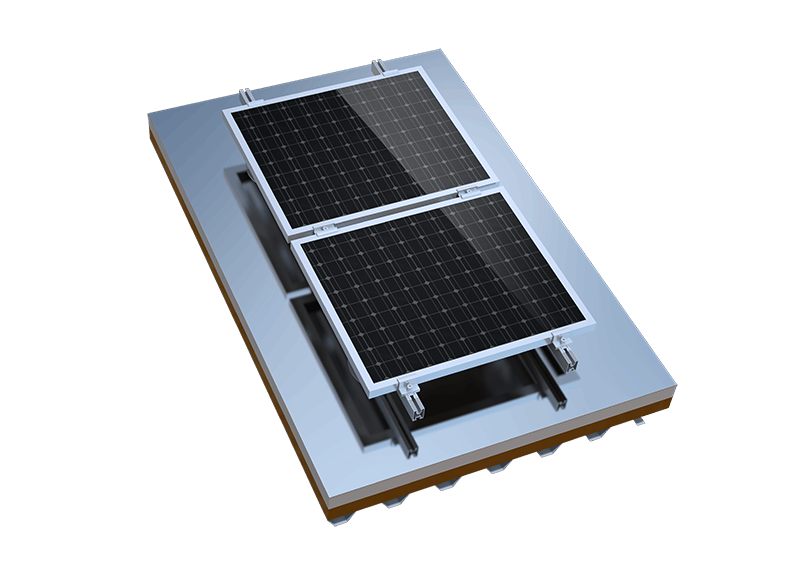

Fiber-reinforced plastic installation shaft, with a thermal conductivity coefficient only 1/100th that of metal, effectively isolating temperature conduction.

The circular structure design, coupled with the widened fusion area of 40mm, ensures a secure fusion, preventing any water leakage.

By utilizing an anchor rod structure directly connected to the steel framework of the roof, the fixation is more secure.

All fasteners are of M8 size, minimizing the number of installation tools and maximizing construction efficiency.

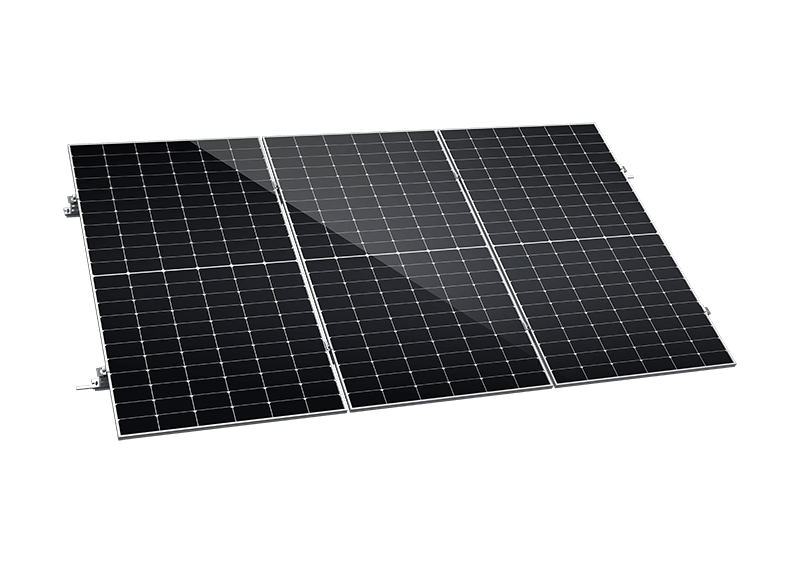

It is suitable for roofing with waterproof coil and cement concrete flat roofing.

It can be adapted to all components with frames.

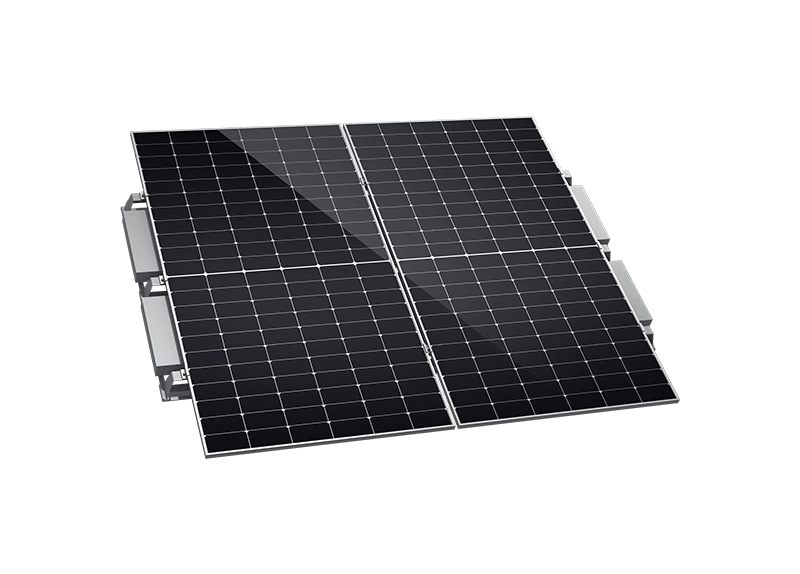

The use of ballast stone to press the support, can be a good barrier to the invasion of wind.

All fasteners are of M8 size, minimizing the number of installation tools and maximizing construction efficiency.

It is installed in the die casting bracket plane, without additional guide rail, easy installation and high flexibility.

It can be adapted to all components with frames.

The use of ballast stone to press the support, can be a good barrier to the invasion of wind.

All fasteners are of M8 size, minimizing the number of installation tools and maximizing construction efficiency.
